How-to

List of answers to frequently asked how-tos.

How to render 3D objects inside the Panoramic Sphere

NOTE Starting from Version 1.1.0, the plugin supports a new Opaque rendering mode to simplify drawing 3D objects inside a panoramic sphere. Read 'Blend mode' for more information. Below instructions apply when using the default ESphereBlendMode::Translucent mode.

Following how UE5 renders Translucent objects, to correctly draw the Panoramic Sphere over a generic 3D environment, we make the following adjustments to all objects needed to be shown as part of a Panoramic Sphere (like the Sphere and Widgets):

• render them as Translucent;
• override their Translucent Sort Priority;
• disable depth test.

Note that, to guarantee a color-corrected output of the panoramic assets, we also tune some rendering settings that impact the rendering of 3D objects (see APanoramicSphere::OverwriteRenderingSettings()). If needed, you can update them after calling the Play()/End() methods.

ANSWER To render a 3D object inside the Panoramic Sphere (including a standard UE5 VR motion controller), you must:

• assign only Translucent materials to the object;
• set its TranslucentSortPriority property to a value >=200 (you can find the property in the 'Rendering > Advanced' section of the StaticMeshComponent detail panel).

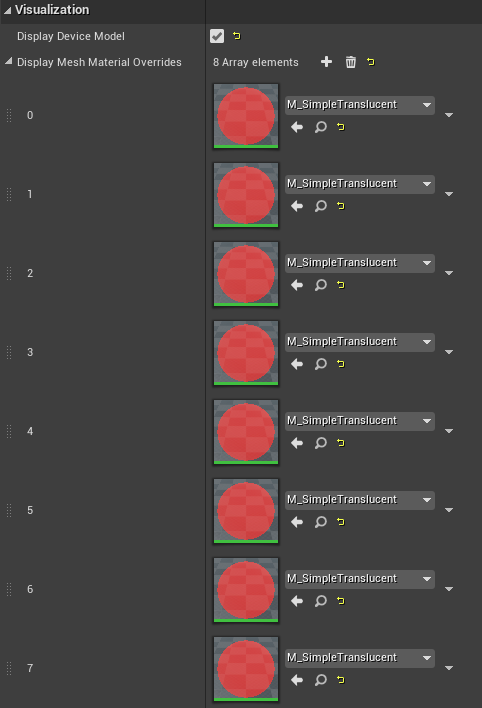

Example of overriding Translucent material slots

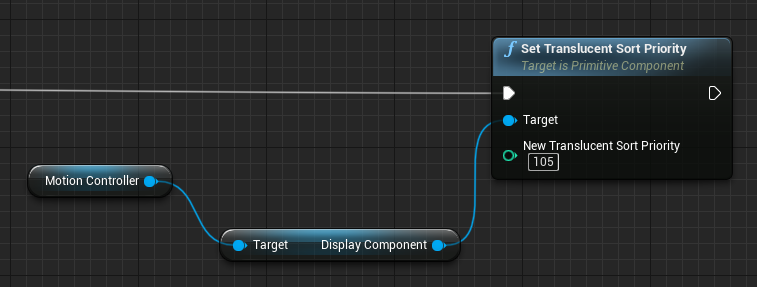

Example of setting the TranslucentSortPriority property from Blueprint

Drawing VR Motion Controllers

Rendering the VR motion controllers inside the Panoramic Sphere could require some extra work if you're using the visuals supplied by UMotionControllerComponent, as UMotionControllerComponent doesn't make the underlying UMeshComponent directly accessible.

The simplest solution is to provide a custom mesh setting the property CustomDisplayMesh, configuring it as described above. If instead you want/need to use the visuals provided by UMotionControllerComponent, then further work from your side is needed.

For the HTC Vive in UE4.26 for example, you can override the 8 used material slots through the exposed property 'Display Mesh Material Overrides' (see screenshot above). You can then set the TranslucentSortPriority property acting on the component named DisplayComponent (see screenshot above for doing it from Blueprint). As this is a private property exposed only to the UE4 Reflection system, accessing it from C++ is more complex:

void SetTranslucentSortPriorityForMCC(UMotionControllerComponent* MotionController, int32 Value)
{
    if (ensure(MotionController))
    {
        // GET_MEMBER_NAME_CHECKED(UMotionControllerComponent, DisplayComponent) // can't be used, DisplayComponent is a private member
        FObjectPropertyBase* DisplayComponentProperty = CastField<FObjectPropertyBase>(MotionController->GetClass()->FindPropertyByName("DisplayComponent"));
        if (ensure(DisplayComponentProperty))
        {
            void* ptr = DisplayComponentProperty->ContainerPtrToValuePtr<void>(MotionController);
            check(ptr);

            UObject* DisplayComponent = DisplayComponentProperty->GetObjectPropertyValue(ptr);
            if (UPrimitiveComponent* Comp = Cast<UPrimitiveComponent>(DisplayComponent))
            {
                Comp->SetTranslucentSortPriority(Value);
            }
        }
    }
}

As all the above information are implementation dependent, they could not apply when using motion controllers other than the ones of HTC Vive, or versions of Unreal Engine other than the indicated one.

How to add custom interactive UMG widgets

You can add any desired UMG widget to a panoramic sphere, to act as a custom interactive hotspot or simple aesthetic element. Any manually added UMG widget must be managed directly by the user, that must both check for possible interactions and delete it when no longer needed.

To add a custom UMG widget to a panoramic sphere (note that you can access the Panoramic Sphere used by a Panoramic Director accessing its PanoramicSphere property):

1. call `NewPanoramicWidget()` to create a new UPanoramicWidgetComponent, specifying the UMG widget to display.
2. on the Panoramic Sphere actor, call the method `AttachWidget()` to add the above widget component to the sphere (you'll have to call DestroyComponent() on the widget component when no longer needed).

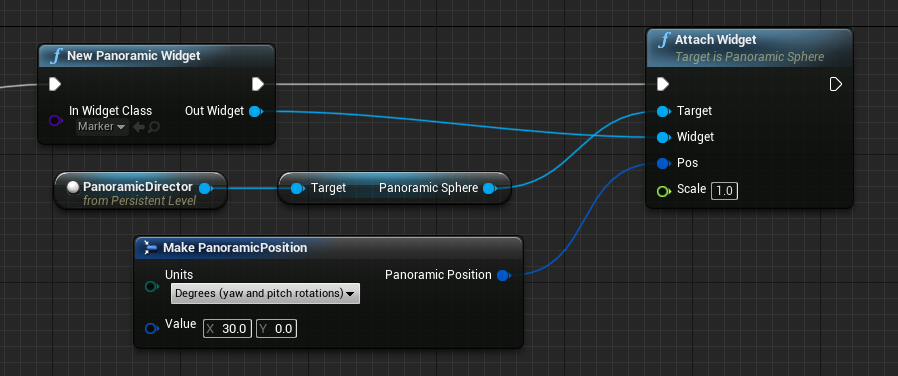

Creating a new Panoramic Widget component

To detect if the user is pointing/looking at the Panoramic Widget, you can call TracePanoramicWidget().

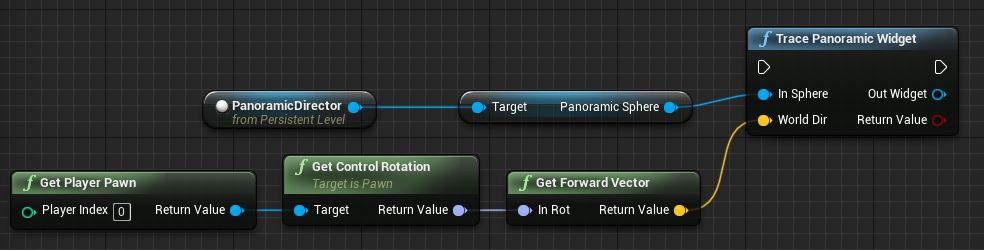

Tracing a panoramic sphere to check for interactions with a widget

When the Panoramic Widget is no longer needed, you must dispose it calling DestroyComponent().
